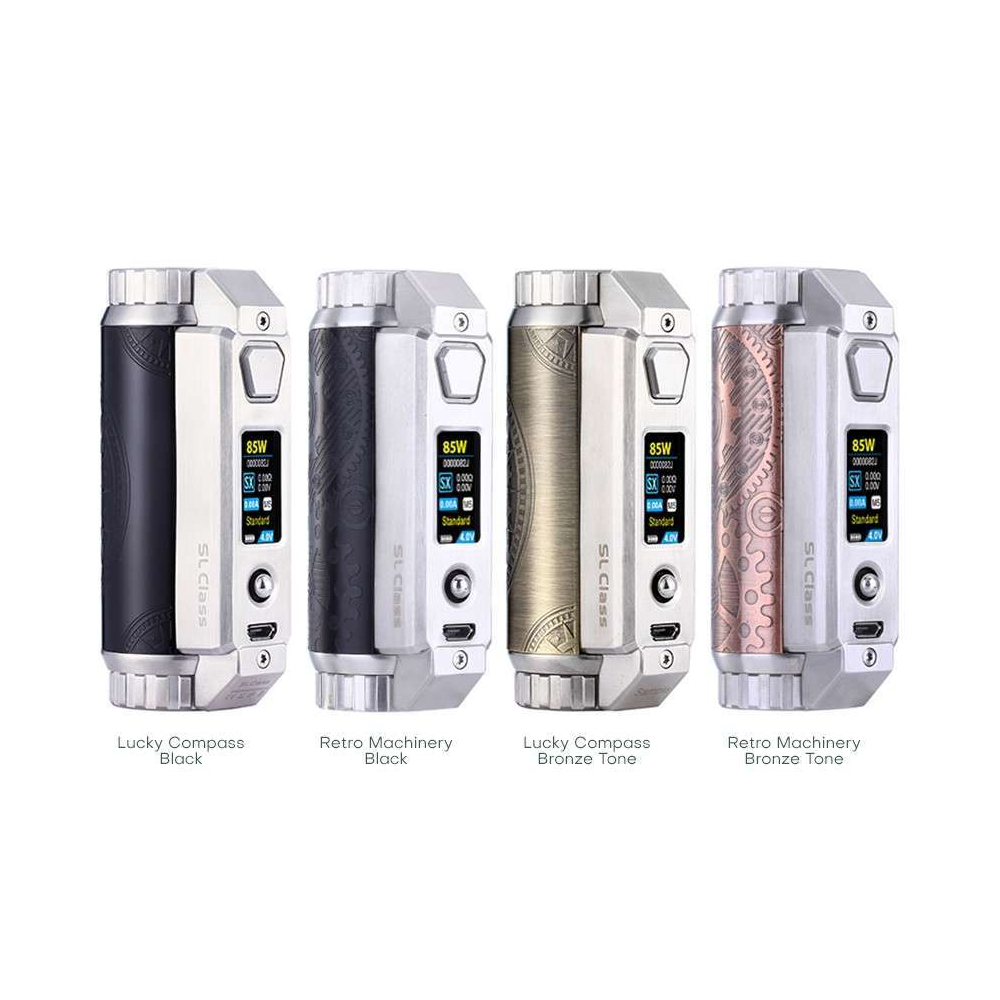

SX Mini - SL Class Series Colors

The SXmini SL Class has the SX485J chipset that delivers a maximum output power of 85W with a single 18650 or 100W with a 20700/21700 battery. The SX mini SL is made of 316 stainless steel.

Color
Features :
  • Powered by the YiHi SX485J
  • 316 Stainless Steel +Aluminum with etching
  • TFT Color Screen
  • Support 3 kinds of batteries 18650, 20700 and 21700
  • Max 100watts(Require battery current over 35A)
  • Joystick control
  • Precise temperature control
  • Added the Novice mode, more easy to operate for starters
  • 26mm 510 connector



Specs & other features :

 . Powered by the YiHi SX485J processor.

 . It is a single 18650/20700/21700 battery device, with a maximum output of 100 watts/joules.( Require battery current over 35A )

 . TFT color display

 . Joystick control (left, right,up ,down and press down Five direction

 . Size: L89 mm x W41.5 mm x H31.5 mm

 . Variable Joule supports all TC wire, SS/Ti/Ni

 . Removable battery.

 . New innovative technology SXi-Q control system - Customize your own taste

 . Temperature control: Anti-dry burning technology.

 . Output Joule: 10J-100J. 212-572°F / 100-300°C.

 . Resistance: 0.05-3.0 ohms (Joule mode).

 . Output Voltage: 0.7 - 9.5 Volts.

 . Resistance: 0.05 ohms - 3.0 ohms (Power mode).

 . Taste modes: Powerful+, Powerful, Standard, Soft, Eco & SXi-Q-S1~S5 and Novice mode.

 . Buck-Boost & Boost, DC-DC Converter.

 . Stainless Steel, stabilized wood or carbon fiber,etc

 . Upgradable firmware. Graphic user interface.

 . Reverse polarity, short protection, low resistance, low battery voltage, overheating & battery over-charge protection.

005895-RETROMA/BRNZTONE

Data sheet

Accu type
1 Accu
Kit/Mod type
Box
Compatible battery
20700
Compatible battery
21700
